PU SANDWICH PANEL

PU SANDWICH PANEL

MULTI-CHOICES

According to different usage of insulated panels, PU Sandwich Panel can be divided into three types: Wall panel, Roof panel, Cold Store Sandwich Panel. Widely used in industrial and commercial buildings, Cold Storages, Clean Rooms,warehouses and prefab buildings.

SUPER INSULATION

Low thermal conductivity of pu sandwich panels with excellent thermal insulation properties, can greatly reduce the thickness of periphery of the building structure, which effectively increasing the interior area of the building and save energy and costs.

Advantage

Super flame retardation

Super flame retardation

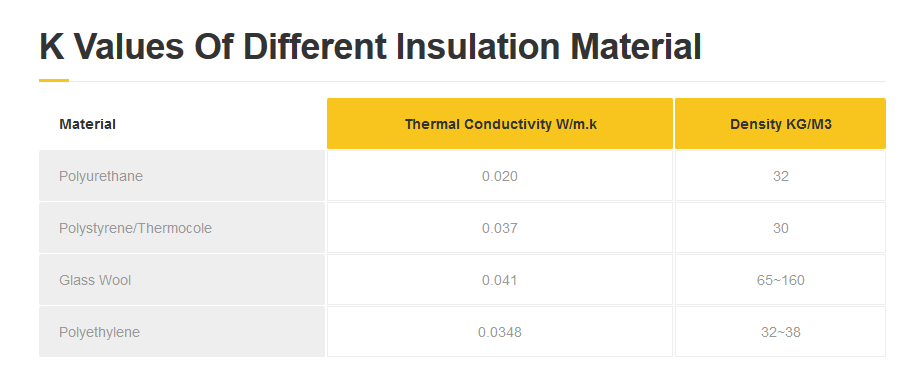

The coefficient of thermal conductivity is 0.023w/(m•k), which ensures better thermal insulation efficiency. In practice, this effectively keeps the building absorbing heat and brings enormous economic benefits.
Economical

Economical

Great flame retardation and the complete removal of cold bridges (during the rafter installation), do help reduce heating bills.
Durable

Durable

ARTIFEX INFRA pu sandwich panels are the most durable thermal insulating material in the construction industry. Under the normal maintenance, its service life is the same with buildings.
Ecological

Ecological

100% of the material is recyclable and the panels are friendly to the environment at the production and disposal stages.
Easy and quick installation

Easy and quick installation

Compared with traditional thermal insulation methods, ARTIFEX INFRA use less material while the installation process is less time-consuming and labor-demanding leading to lower building costs.

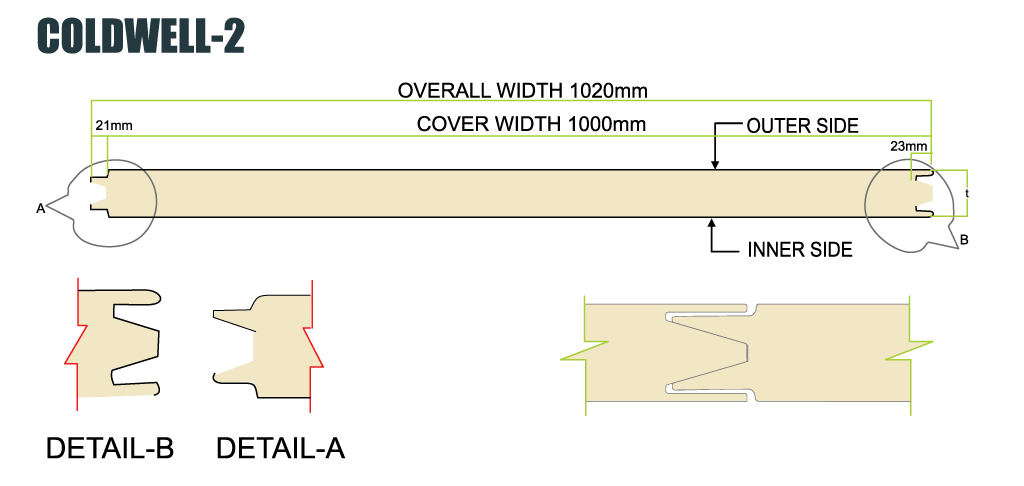

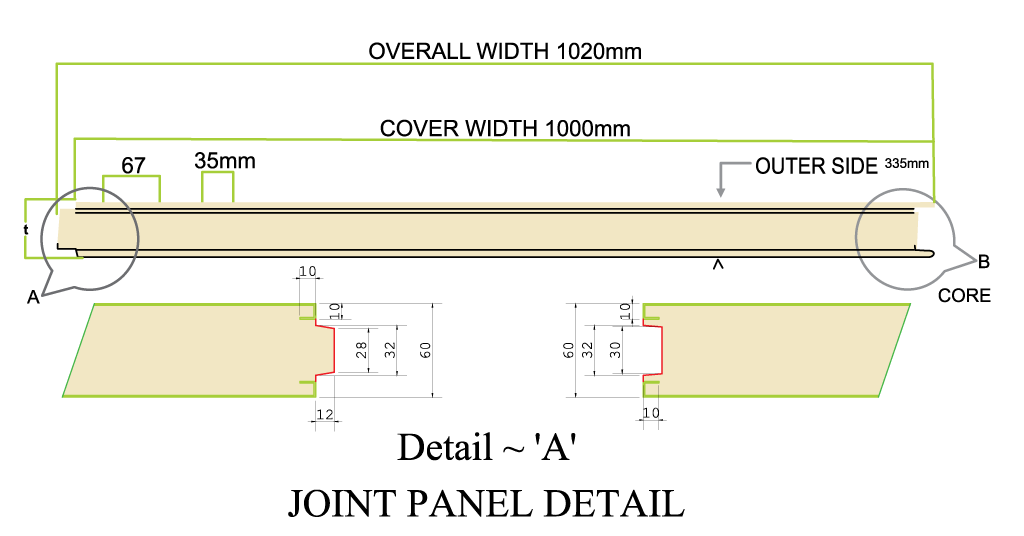

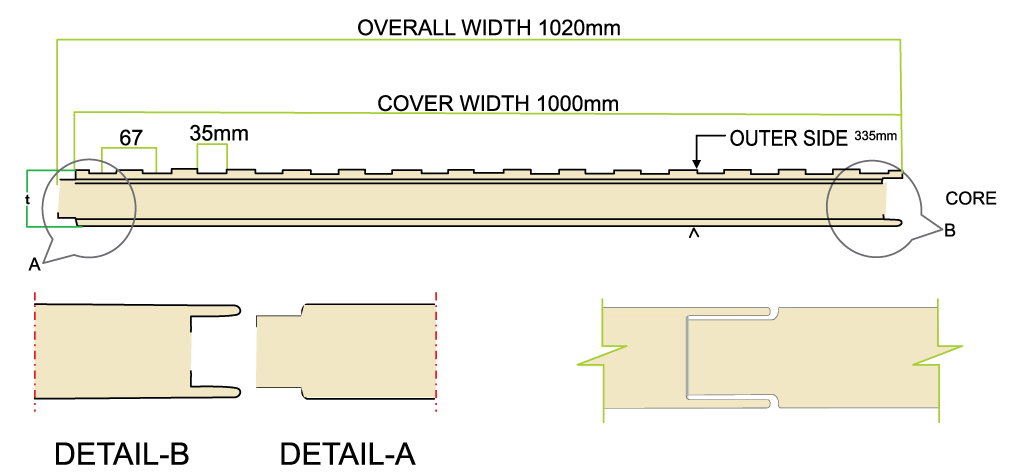

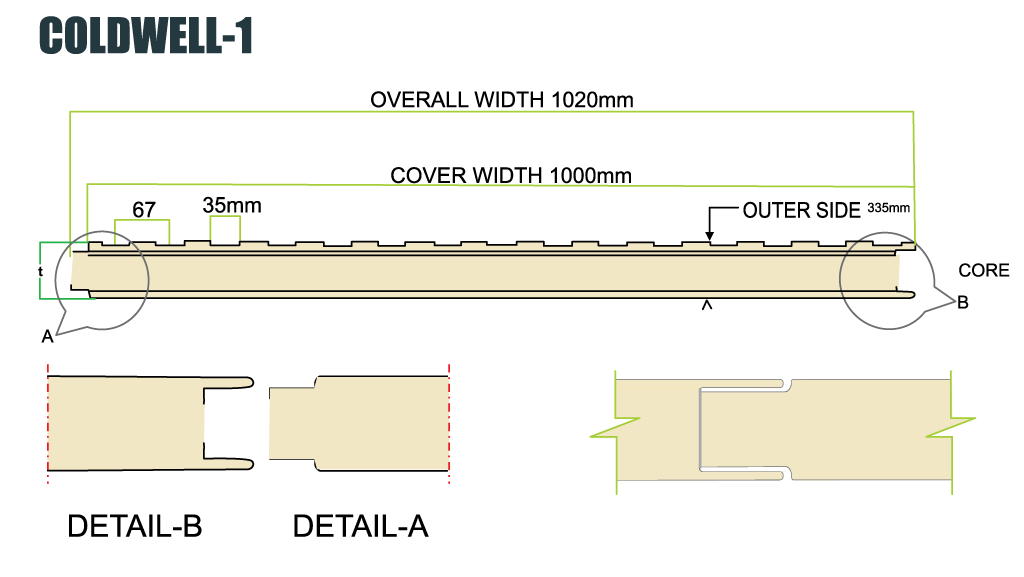

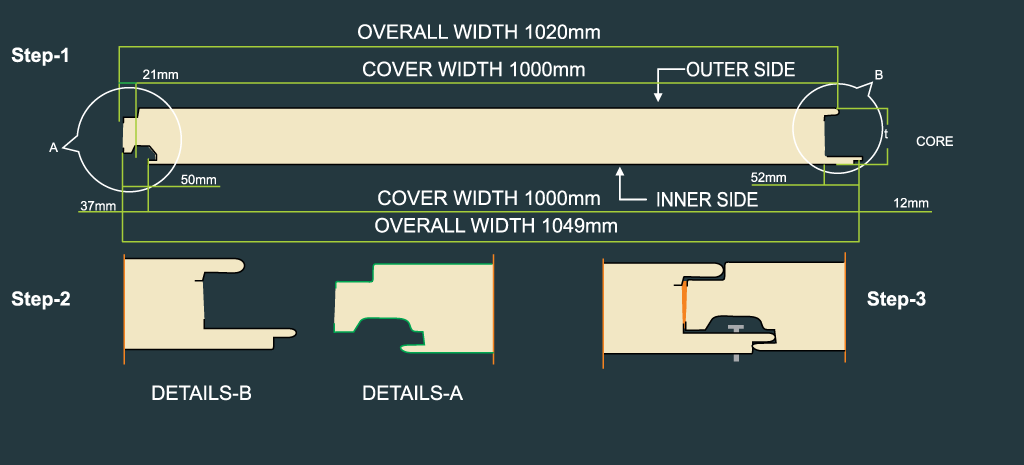

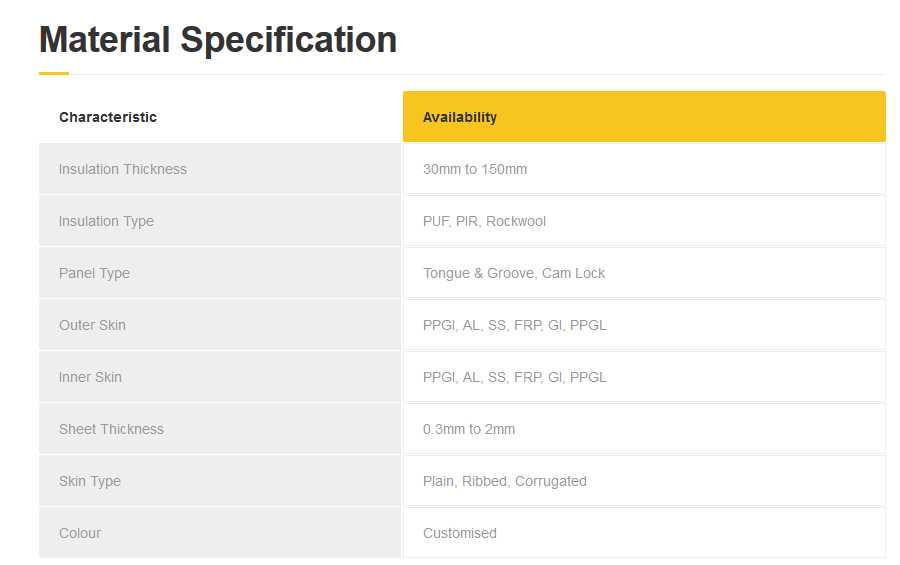

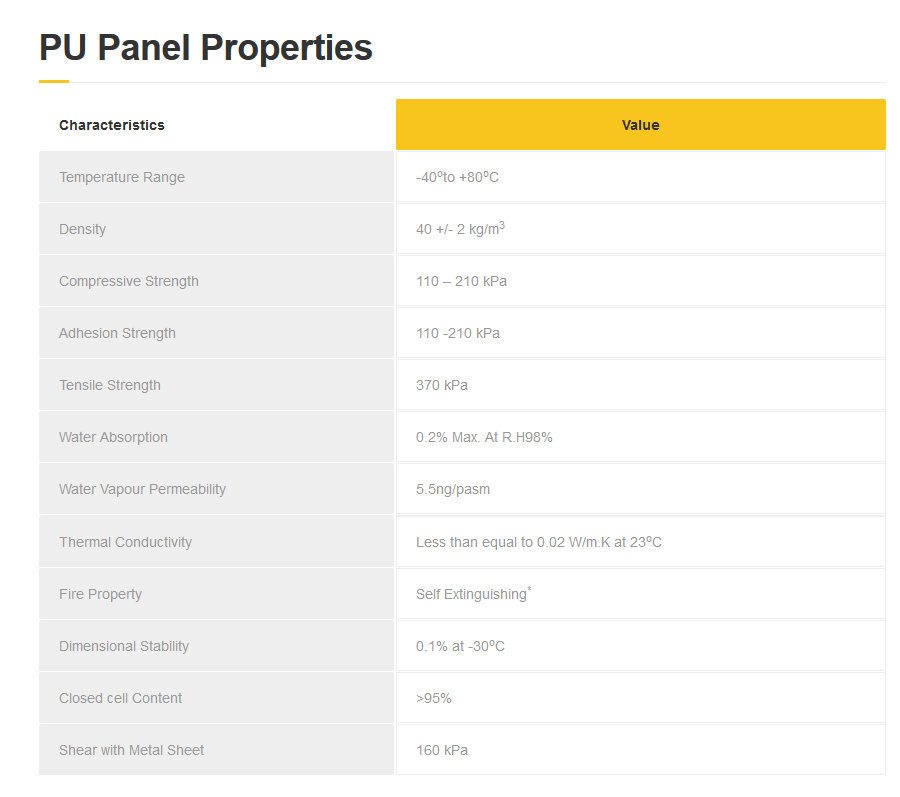

Technical Parameters







Manufacturing technology

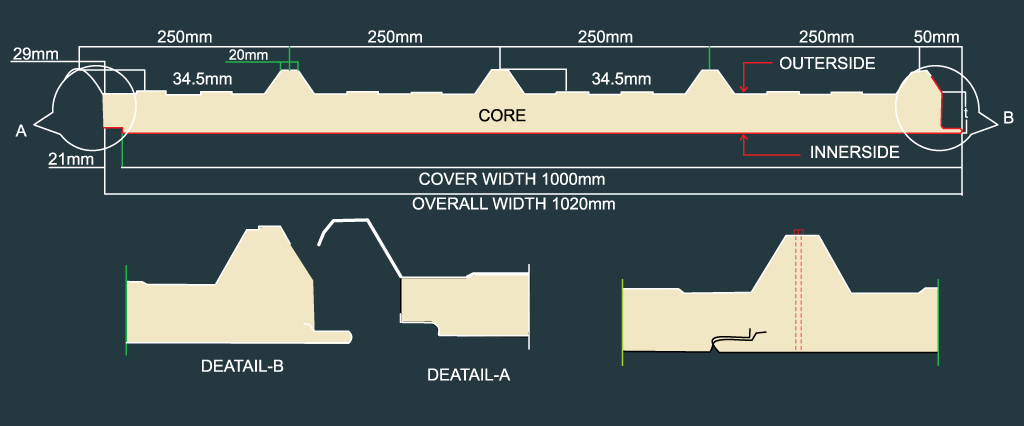

The classification of polyurethane sandwich panel by application. There are three application that the cold room panel,  sandwich wall panel, polyurethane sandwich roof panel(our roof panel is the four waves roof panel in general).

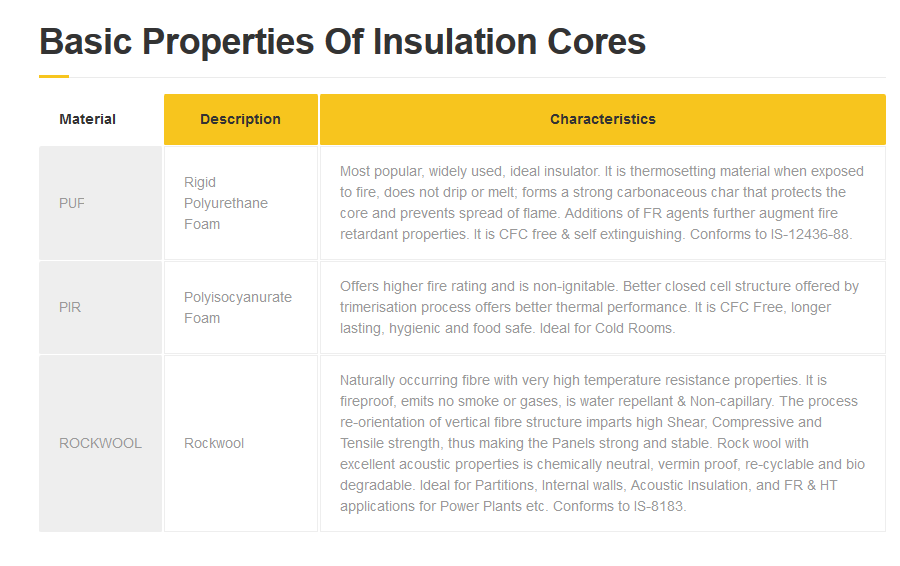

The classification of PU sandwich panel by raw material. There are four kinds that PU sandwich panel, rock wool sandwich panel, glass wool panel, EPS panel.

The type of coil coating. There are three kinds that PPGL/PPGI/Bare Galvalume. The normal thickness of  pre-painted galvanized iron sheet is 0.4-0.7mm, the pre-painted galvalume iron is 0.4-0.6mm, the third bare galvalume iron is 0.4-0.7mm, they all come from INDIA's repuated coil manufacturers company like BHUSHAN, ASIAN, INDIAN STEEL, JSW, TBSL & ESSAR.

Installation

Puf Panels Installation at site

Puf Panels Installation at site....!!! #ArtifexInfra #Buildingmaterial #cleanroom #coldchain #coldstorage #coldstore #Coldwarehouse #continuousline #foodprocesing #GreenConstruction #Insulatedpanels #Insulation #Insulation #Rockwoolpanel #panelmanufacturing #PEB #PIRpanel #PIRpanels #Prefab #pufpanel #qualityproduct #Rockwoolpanel #roofingsolutions #safety #Sandwichpanel #sandwichpanels #stacking #storage #supplychain #warehousing #WorkContract www.artifexinfra.com | www.insulatedpufpanel.in

Posted by Puf Panels on Wednesday, 28 June 2017



1, First of all, it must carry on the construction preparation before installation, include personnel, materials, etc. All will be well prepared.
2, Before the installation of wall panel, it should check whether the verticality and levelness of metope purlin installation requirements, wall frame column vertical degree meets the requirement.
3, Before installation polyurethane wall panel, it should first mounting plate bottom water retaining plate and the bottom of the window to block water board, water retaining plate and wall frame beam connection with self tapping screw fixation.
4, Polyurethane wall panel links with ground.
Lateral links: fixed polyurethane sandwich panel with the ground at the other end of the round hole with steel frame fixed, connection between the two plate mouth involution, if occurrence crack of the connectors available heat preservation to fill.
Vertical links: the gap between plates, using the dedicated button concave groove in the fixed wall panel.


FAQ

What is PU Sandwich panel (Polyurethane sandwiched panel)?

Worry about the quality and delivery time of PU Sandwich Panel?

Why the temperature of cold room can’t satisfy you?

Do you have cold room door?

How to deal with the gap between the cold storage plate and the plate?

How much is your cold storage board density? Socket is?
