ROCK WOOL PANEL
100% NON-COMBUSTIBLE

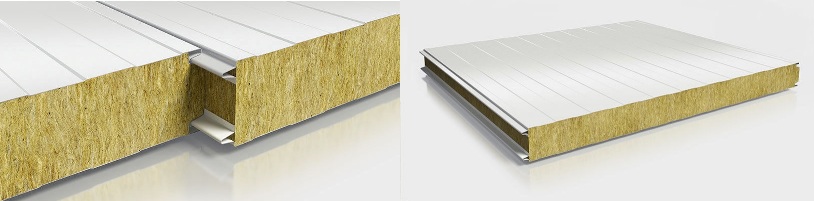

Rock Wool Sandwich Panels are consist of two outer metal sheets (steel or aluminum) with high density basalt as core insulation. Due to the excellent performance thermal fire and acoustic insulation, stone wool core sandwiched panels are commonly adopted for fire-resistance and acoustic applications.
SUPER SOUND ABSORPTION
Rock Wool Sandwich Panels are the most effective acoustic insulators used in construction.Take the 50 mm thick rock wool sandwich panel for example and the panel can absorb the sound over 30 db/m2.Widely used in the steel structure factory building, activities room, roof, wall, air clean room ceiling and partition.
Advantage
COST SAVING & DURABILITY
The rock wool sandwich panel insulation stone wool is made from rock, making it naturally durable and stable over the lifetime of a building. As the unique physical structure, rock wool panel is not affected by changes in temperature or humidity. This means the owner can create a pleasant and stable temperature year after year, while saving energy and money for cooling/heating.
FIRE SAFETY
Have you ever seen rock burn? Neither have we. Rock Wool Panel Products are rated non-combustible. Basalt stone wool adopted to Sandwich Panels is fire-protecting insulation material, it's fibres’ resistance to high temperatures, will limit the buildings to fire or spread. Using Rock wool sandwich panel will improve the building's fireproof performance, protect life and property safety.
SOUND INSULATION
Sound is tough to get through rock. Rock wool sandwiched panels are amongst the most effective acoustic insulation used in construction. Installing Rock wool panel provides a real reduction in external noise, our rock wool panels allow builtors to design the right acoustic environment for each space, whether it’s a workshop, concert hall, air clean room, or residential house.
FAST CONSTRUCTION

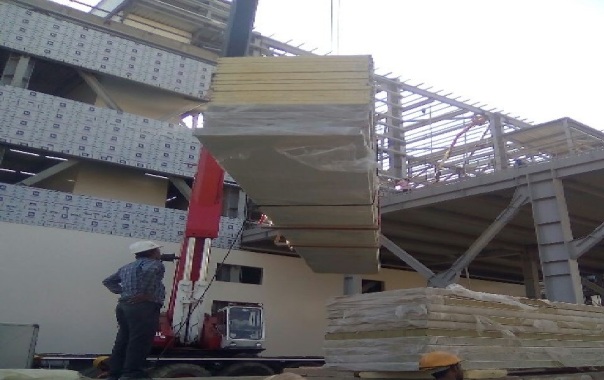

Rock wool sandwich panels and accessories are produced in full accordance with the building layout drawing, it is fast and flexible to install on the construction site. The construction period can be shortened by more than 40%. Therefore, rock wool sandwich panel is ideal for fast constructed prefabricated buildings, such as industrial warehouse, container house, prefab buildings.
LONG LIFE TIME

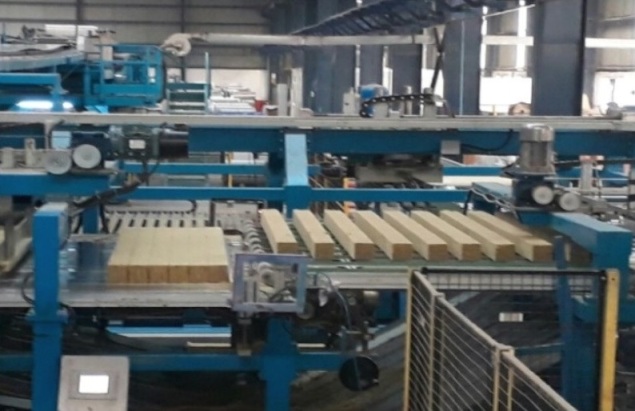

Rock wool sandwich panel is produced by the automatic production machine at a constant temperature, all the raw materials and process are in strict accordance with the international quality management system. which means the quality of the product is stable, can guarantee the life time of 35 years.

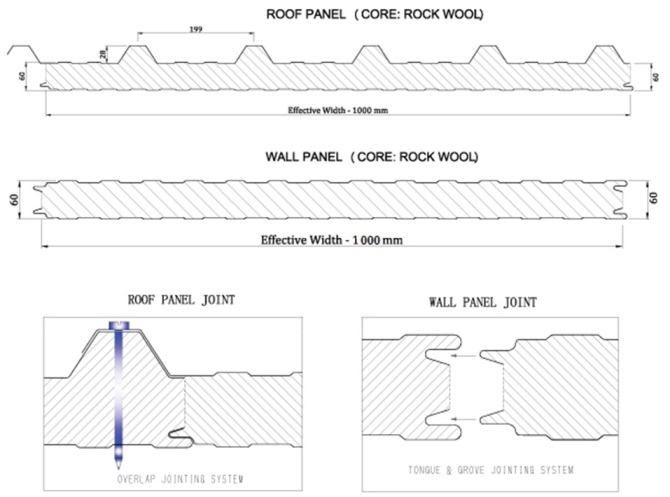

Technical Parameters
Upper and lower surfaces: galvanized color steel, thickness of 0.4-0.7mm. According to the specific requirements of customers, can be colored galvanized steel or galvanized steel. After the first steel roll forming machine in rock wool factory complex.

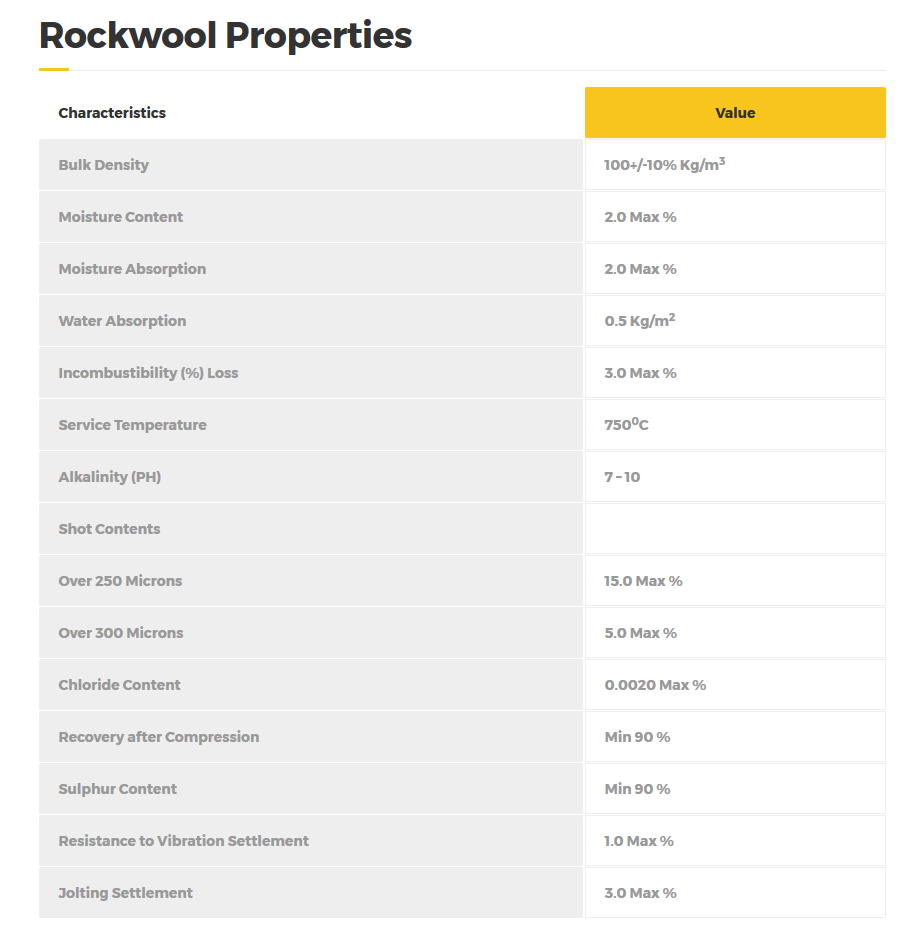

Rock wool core material: the density of 120kg / m3; rock wool block staggered laying, the fiber direction perpendicular to the sandwich is still under the surface, and closely Detailed enrich the entire vertical and horizontal surface movement plate. And wool and, through the high intensity blowing agent connections between the lower plate is formed integrally between rock wool blocks. Sophisticated production process to ensure to produce high density rock wool insulation between the body and the metal plate inside the inner wall of strong adhesion, so that the rock wool sandwich panel has good stiffness.
